In modern water treatment, biomedicine, and the food industry, membrane technology plays a pivotal role. Among various membrane materials, PES (Polyethersulfone) hollow fiber membranes stand out for their superior performance. This article takes you on a journey through the material, manufacturing process, and real-world applications of PES hollow fiber membranes.

1. What is PES? The Secret Behind a High-Performance Plastic

PES (Polyethersulfone) is a high-performance engineering plastic belonging to the aromatic polymer family. It features outstanding thermal stability, chemical resistance, and mechanical strength, making it ideal for harsh filtration environments.

 Key Properties of PES:

· High Temperature Resistance: Operates continuously at ~180°C

· Oxidation Resistance: Durable in strong oxidative conditions

· Good Hydrophilicity: More water-attracting than traditional materials like PVDF

· Excellent Biocompatibility: Ideal for biomedical and pharmaceutical use

2. Manufacturing Process: From Polymers to “Microscopic Capillaries”

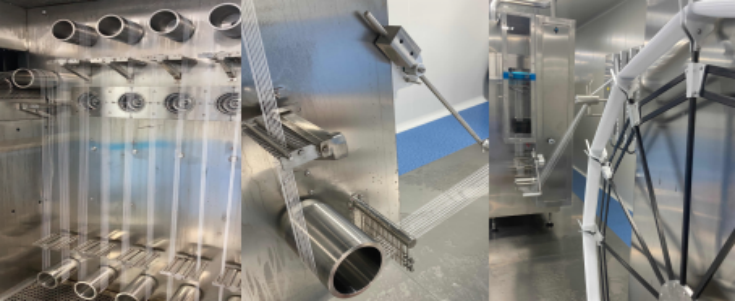

PES hollow fiber membranes are typically made using phase inversion technology, a method that transforms liquid polymer solutions into solid, porous membranes.

��️ Main Steps:

1. Dope Preparation: PES resin is dissolved with solvents (e.g., NMP) and additives.

2. Spinning: The solution is extruded through a spinneret into a hollow fiber form.

3. Phase Inversion: The fiber is immersed in a coagulation bath to form its porous structure.

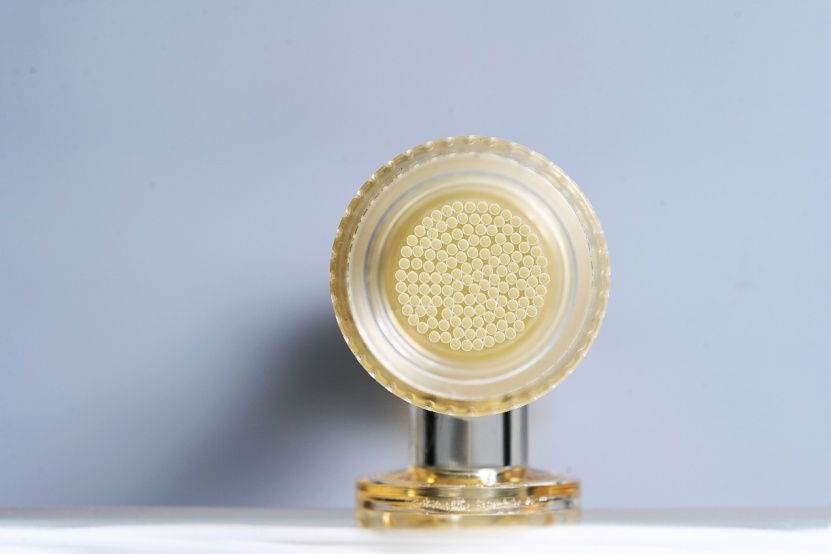

4. Drying & Finishing: The fibers are washed, dried, and assembled into modules.

Structural Features:

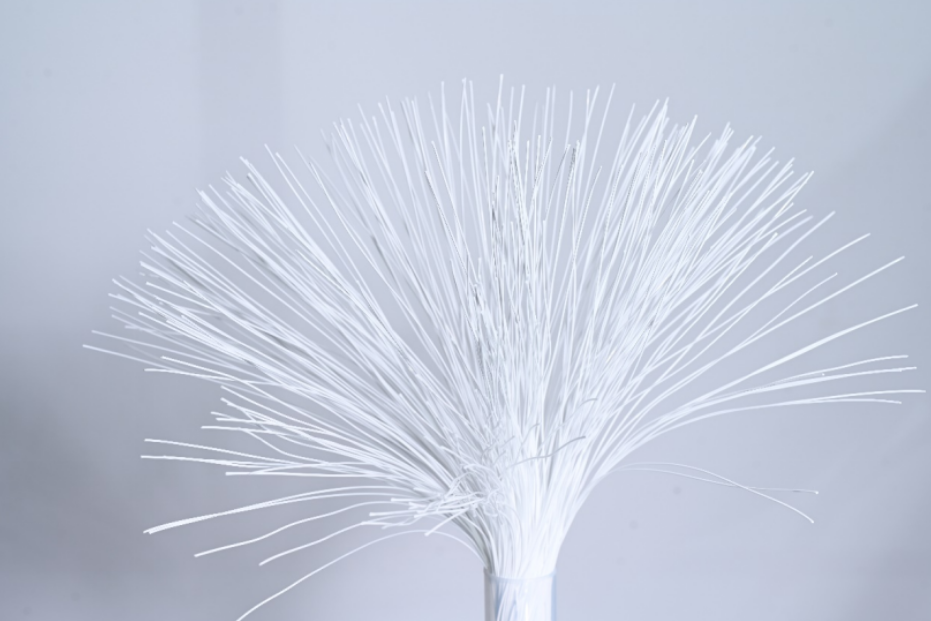

· Hollow Core: Like tiny straws, fluid flows through and around the fibers.

· Double-Layer Structure: A thin, selective outer layer for separation, supported by a porous inner structure for strength.

3. Applications: Big Impact from Tiny Fibers

The unique combination of high filtration performance, chemical resistance, and mechanical strength makes PES hollow fiber membranes suitable for demanding filtration tasks across industries.

 Biomedical & Pharmaceutical

Conclusion: An Invisible but Vital Technology

You may have never seen a PES hollow fiber membrane with your own eyes, but they’re quietly powering some of the most essential systems in our lives—from the water you drink to medical treatments and pharmaceutical production.
